Module Solutions
From concept to production, faster.
Overview
Ryder Industries’ module solutions help accelerate customer innovation – compressing the time from concept to mass production.
For decades, we have dedicated our R&D expertise to mastering wireless and audio solutions. Ryder delivers hardware-ready module solutions that seamlessly integrate into your product ecosystem. Our modules are designed to balance high-performance engineering with cost-effective customisation. These mature, end-to-end solutions help you minimise technical risk and streamline your path to market.
With our integrated design and manufacturing capabilities, we don’t just help you prototype; we provide the dedicated technical support and certification readiness needed to take your innovative concepts all the way to mass production.
Module Types:
Power Amplifier Module
Ryder’s power amplifier module integrates SMPS and audio power amplifier into a single unit. Equipped with universal-input SMPS, it efficiently supplies power to the audio system and serves simultaneously as the audio power output module for a more compact product layout. Its modular design boosts design efficiency and convenience for customers, shortening the development cycle and reducing the overall cost of audio products. In addition, it boasts strong load capacity, stable audio output and premium sound quality.

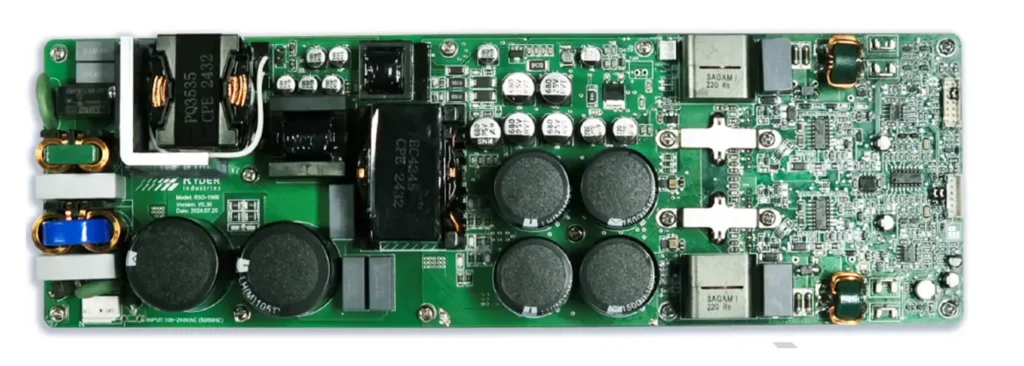

1500W 2-Channel SMPS + Amp Module
Ideally suited for audio applications that demand sustained high power audio output performance, such as professional active speakers and bass amplifiers.
- Features a universal mains input
- Stable and Robust power PFC+LLC topologic SMPS
- 2x1500W 4ohm Class-D audio peak power amplifier

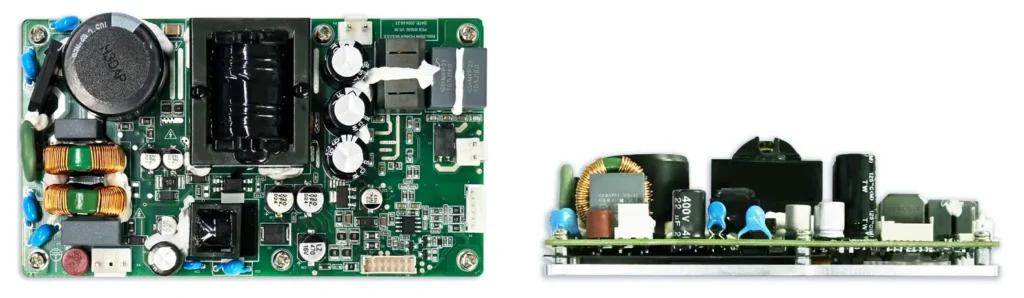

200W 1-Channel SMPS + Amp Module
Designed for bass and guitar amplifiers or active speakers that demand sustained output power.
- A one-channel Class-D audio amplifier
- Features universal mains switching power supply
- Delivers full-range (20Hz–20kHz +/-1dB) high-quality continuous 1×200W 4ohm audio output power

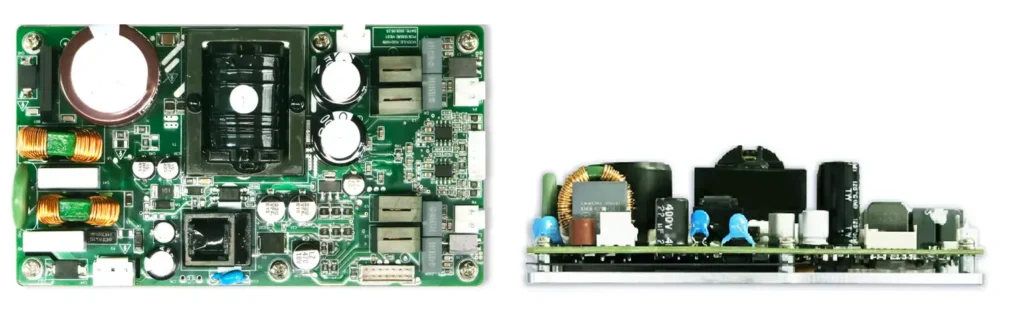

100W+100W 2-Channel SMPS + Amp Module
Designed for bass and guitar amplifiers or active speakers that demand sustained output power.
- Features universal mains switching power supply
- A dual-channel Class-D audio amplifier
- Delivers full-range (20Hz–20kHz +/-1dB) high-quality continuous audio 2×100W 4ohm output power

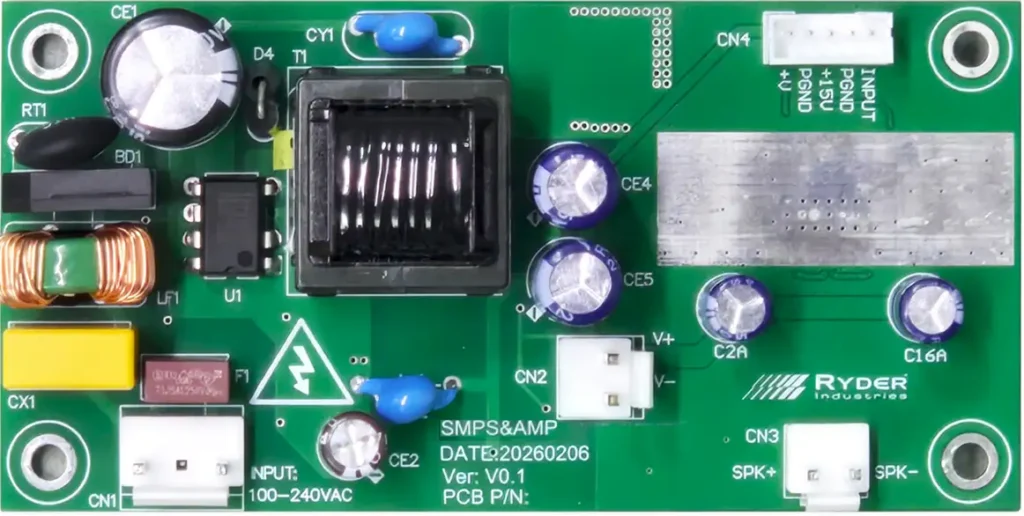

15W 1-Channel SMPS + Amp Module
With high efficiency and a small size, it is ideal for guitar amplifiers and active speaker audio instruments.
- Features universal mains-input SMPS
- A Class-D audio amplifier with rich audio effect tuning
- Delivers high-quality full-range (20Hz–20kHz +/-1dB) continuous 1×15W 4ohm audio output power

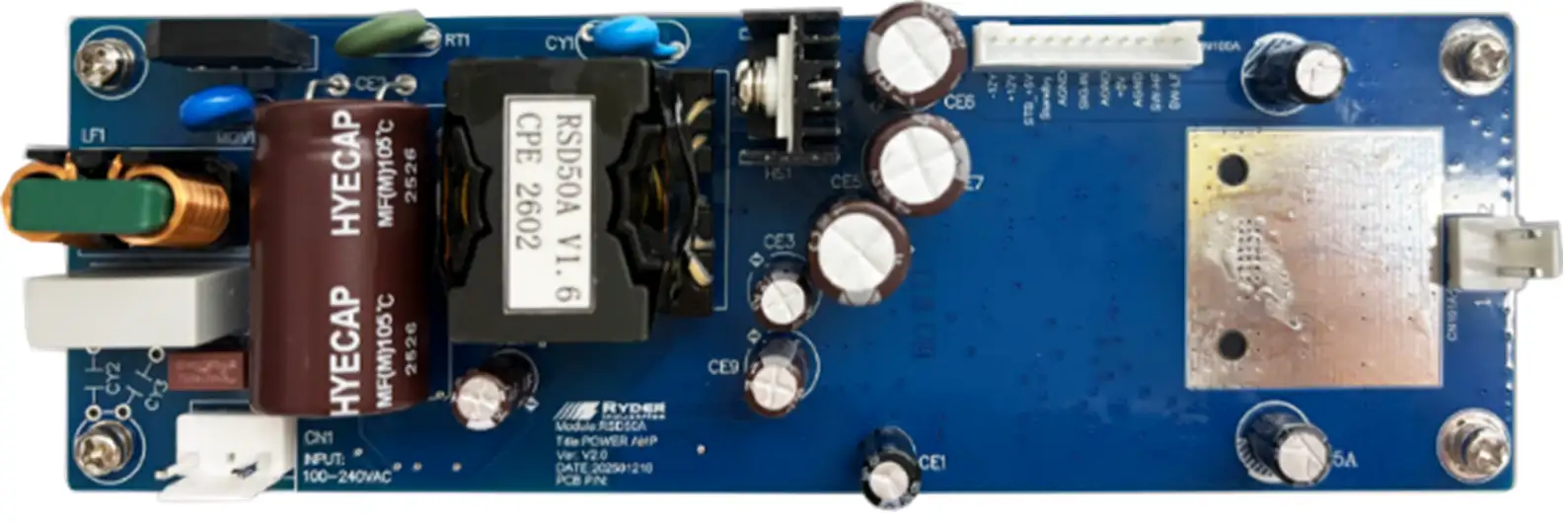

50W 1-Channel SMPS + Amp Module
It achieves higher efficiency and small size – ideal for guitar amplifiers, active speakers and professional audio instruments.
- Features universal mains-input switching-mode power supply
- A Class-D audio amplifier with rich audio effect tuning
- Offers high-quality full-range (20Hz–20kHz +/-1dB) continuous 1×50W 4ohm audio power

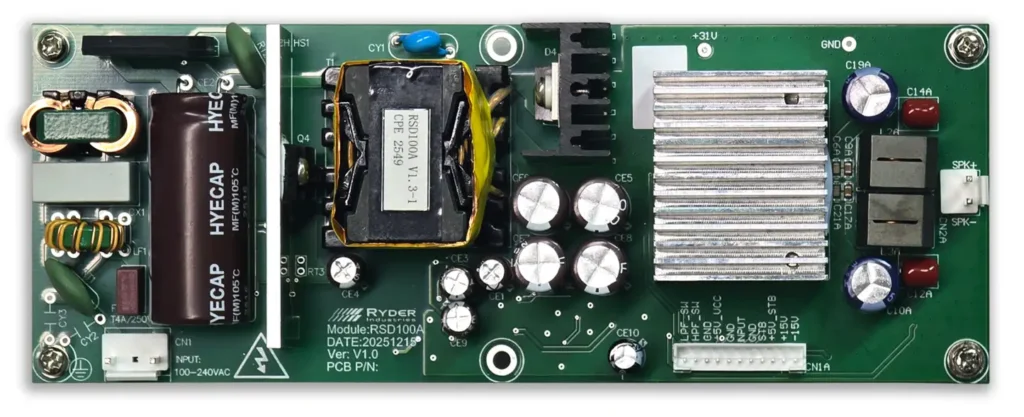

100W 1-Channel SMPS + Amp Module
It achieves higher efficiency and small size – ideal for guitar amplifiers, active speakers and professional audio instruments.
- Features universal mains-input switching-mode power supply
- A Class-D audio amplifier
- Delivers high-quality full-range (20Hz–20kHz +/-1dB) continuous 1×100W 4ohm audio output power
Power Supply Module
Custom-designed for audio equipment, this SMPS module features high efficiency, low noise, low EMI, universal AC input, compact size and great cost-effectiveness. Suitable for all audio-related applications, it powers both main audio units and matching peripherals. With clean, stable output, it avoids power-induced audio distortion, lowers device power draw and heat, streamlines circuit design and cuts manufacturers’ production expenses.

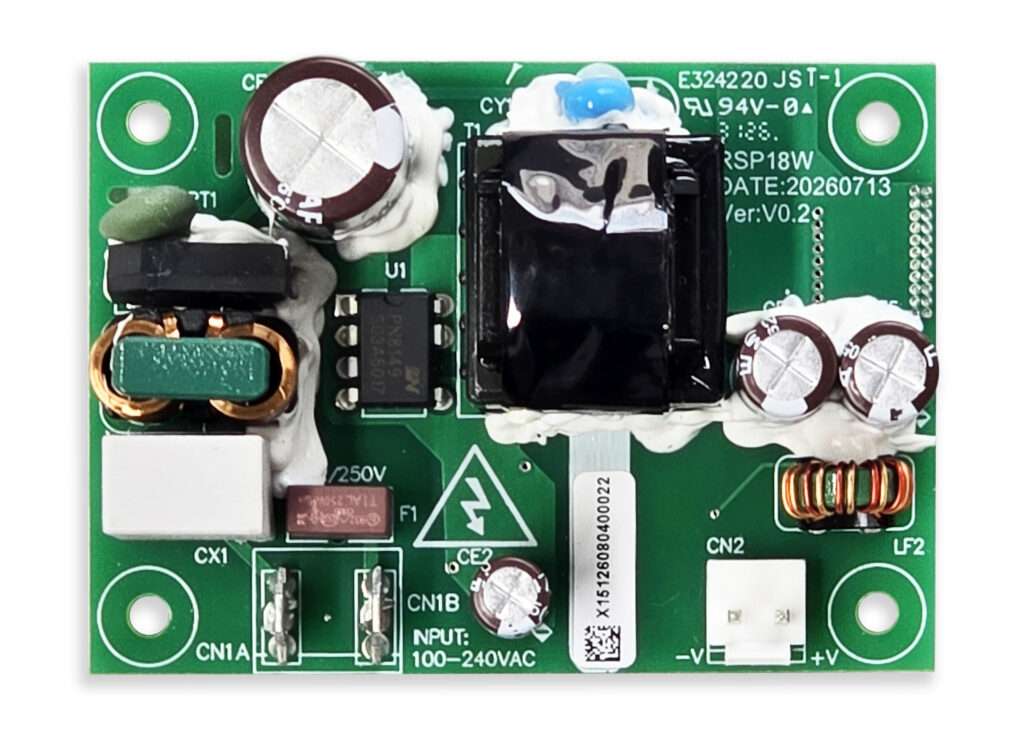

18W Switching Power Supply Module
Recommended for applications including mixers, amplifiers, active speakers and professional musical instrument interface products.
- Stable universal mains-input SMPS that delivers a rated 18W, 15V/1.2A DC output
- It incorporates quasi-resonant flyback topology that delivers higher efficiency and a smaller size for customers across their diverse electronic product applications

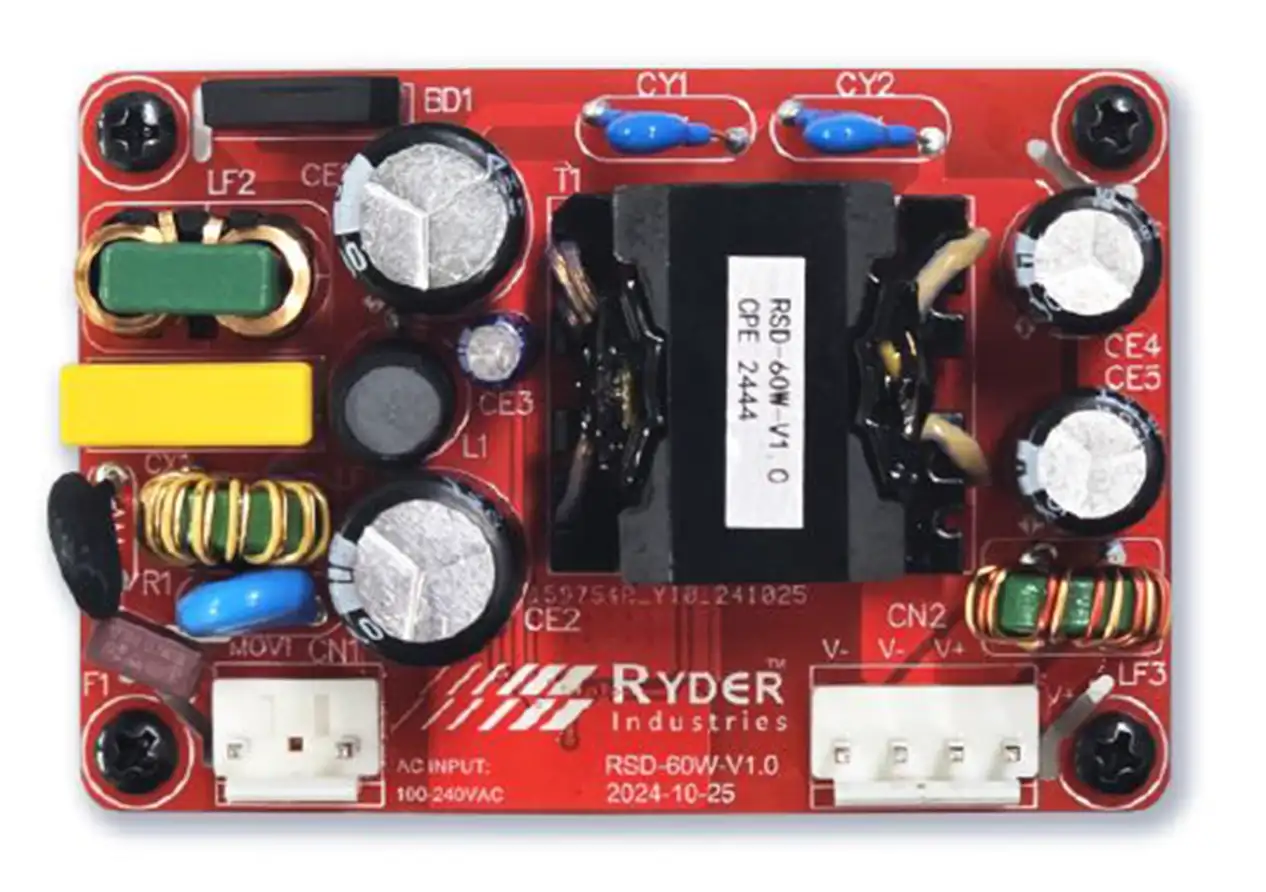

60W Switching Power Supply Module
A SMPS module with higher efficiency and a smaller size, ideal for mixers, amplifiers, active speakers and professional musical instrument interface products.
- RSP60W is a standard worldwide-application switching-mode power supply
- Incorporates GaN HEMT technology and a quasi-resonant flyback topology, delivering a high-efficiency 60W, 12V/5A DC output.
Bluetooth Module (Audio)
Ryder’s Classic Bluetooth Dual-Mode Module adopts a cost-effective solution. It delivers excellent sound quality and consistent reliable performance with stable wireless connection and great versatility, suitable for the full range of Bluetooth-enabled audio products.
Classic 5.0 Dual-Mode Module

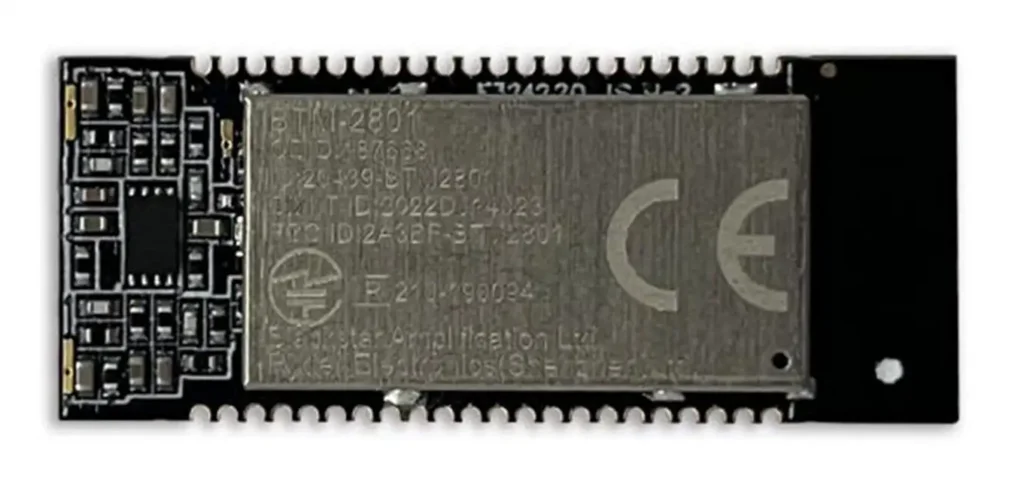

BTM2801 Classic 5.0 Dual-Mode Module
- High-performance stereo DAC and three ADCs for stereo AUX inputs
- I2S TX/RX with master/slave mode and 8kHz–192kHz sample rates
- Dual-Mode (BLE + BR/EDR)
- BLE MIDI with custom baud rates up to 1Mbps

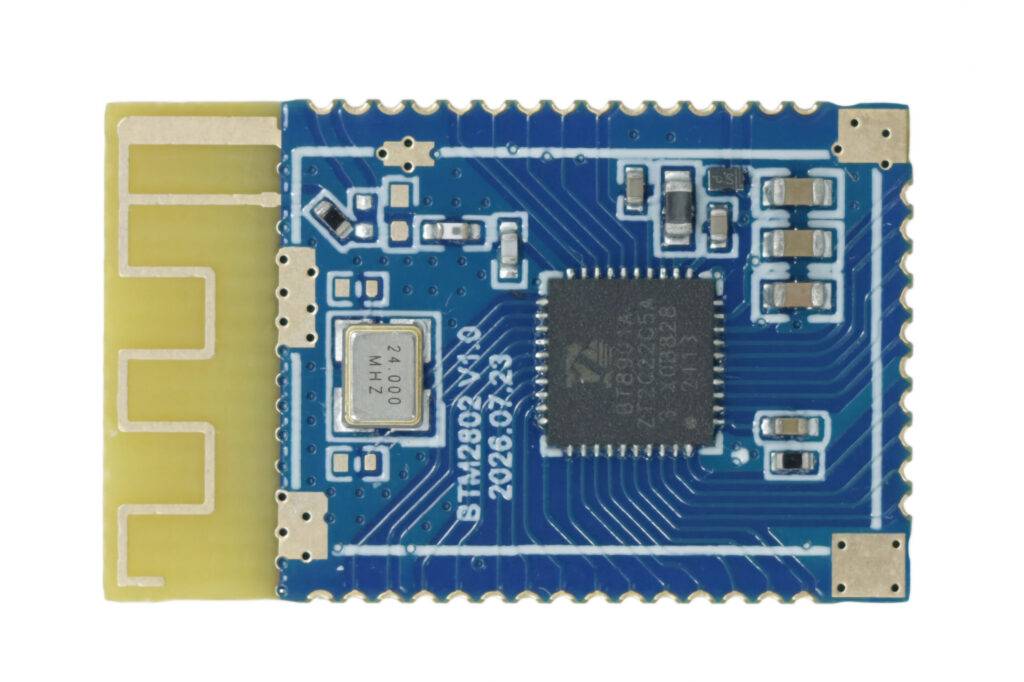

Bluetooth 6.0 Dual-Mode Module

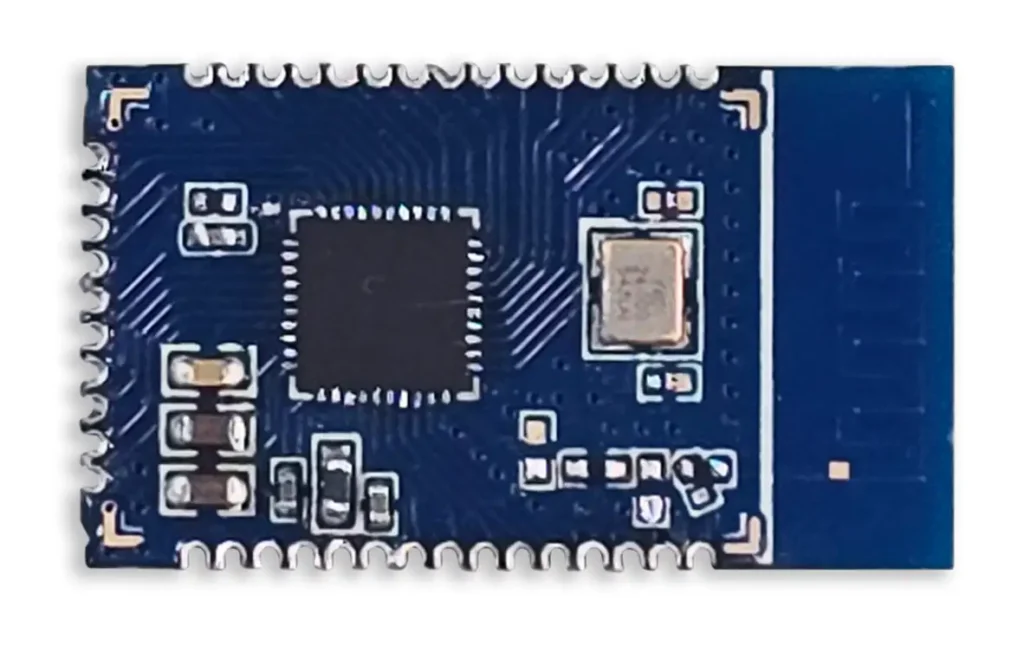

BTM2802 Bluetooth 6.0 Dual-Mode Module
- TWS communication, five-channel MIC amplifier input
- Dual-Mode (BLE + BR/EDR)
- Flexible audio EQ
- Two-channel stereo analogue MUX
- MPEG-1/2/3/AAC/SBC decoding
- One full-speed USB 2.0 host/device controller
- Three full-duplex normal UARTs
- One high-speed UART with CTS/RTS
IoT Module
Ryder’s Wireless Modules serve as the essential hardware foundation for enabling seamless interconnection, real-time data acquisition and remote control of IoT devices.
With protocol-specific optimisations and scenario-targeted designs, they:
- Provide stable, efficient and secure wireless connectivity solutions
- Are suitable for consumer-grade, industrial-grade and outdoor wide-area IoT scenarios
- Fully meet the diversified connectivity needs of the entire IoT industry chain.

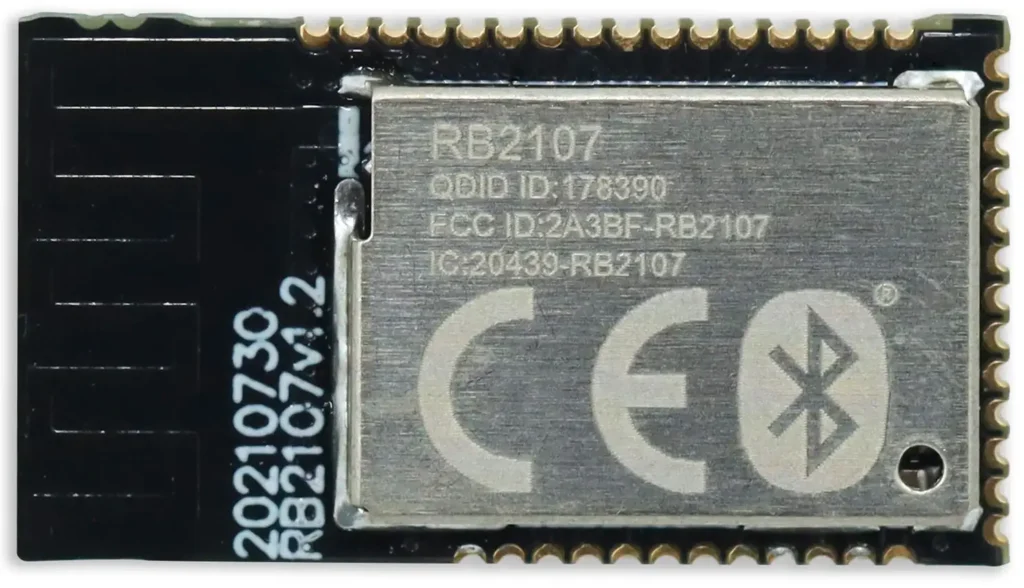

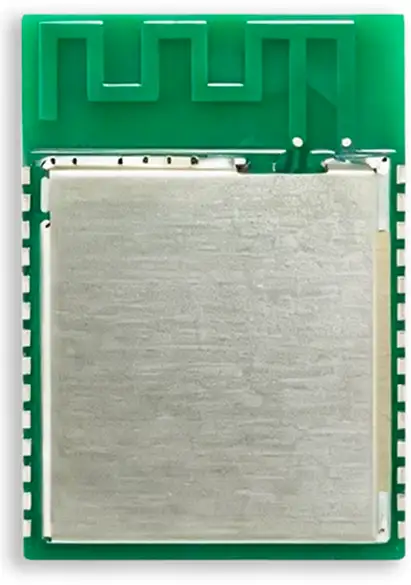

Bluetooth 5.0 Module
Bluetooth 5.0 suits power-sensitive IoT and wearable applications with medium-to-low data rates over short distances.
-
Bluetooth Low Energy (Bluetooth 5.0) 1M, 2M and LE Coded PHYs
- Bluetooth 5.0 LE
- TX Power: 0 dBm @ 5.3mA
- Rx Sensitivity: -96 dBm @ 5.4mA
- Ultra-low power consumption: 1.9μA Typical
- Bluetooth qualified, CE, FCC and IC certified

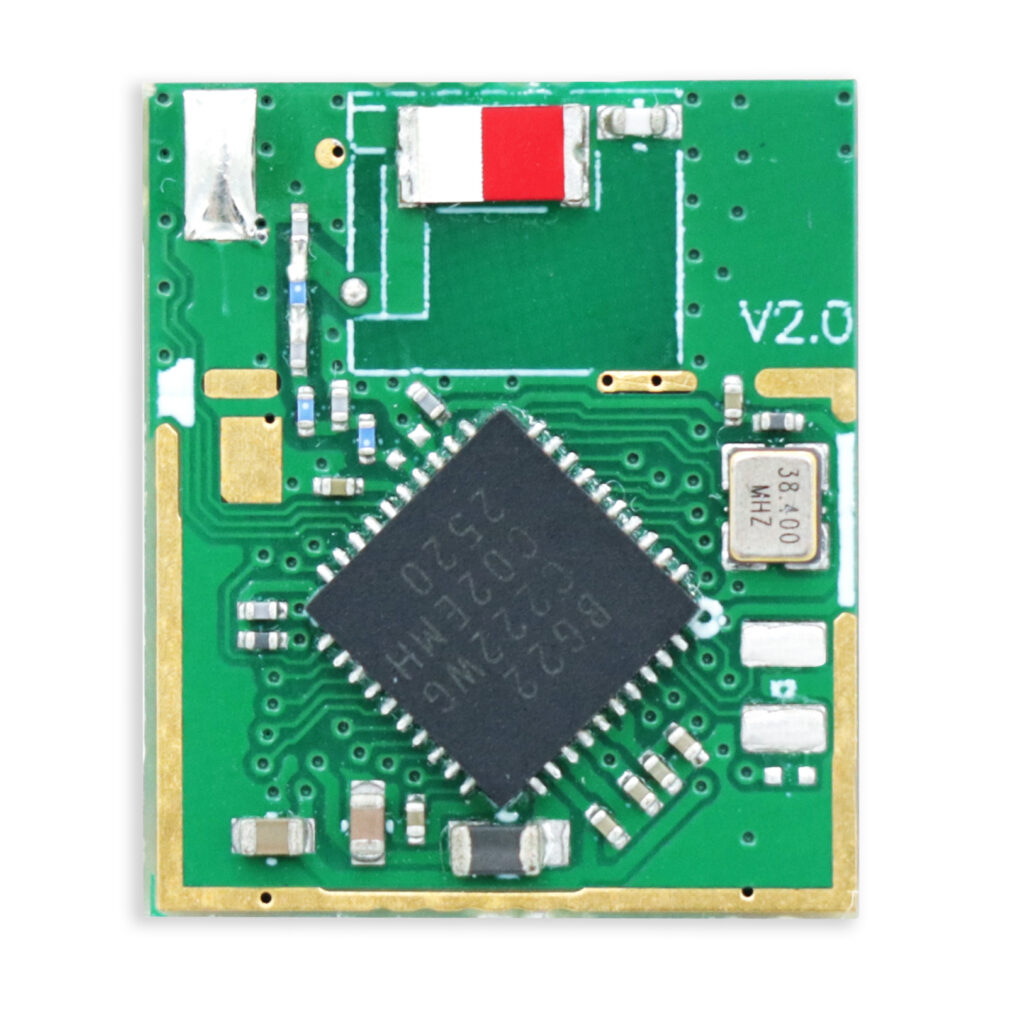

Bluetooth 5.4 Module
Bluetooth 5.4 for IoT and industrial scenarios that require ultra-low power consumption, large-scale connectionless, two-way communication, encrypted broadcasting and high reliability.
-
Bluetooth Low Energy (Bluetooth 5.4) 1M, 2M and LE Coded PHYs
- Bluetooth mesh Low Power node
- Up to 8 dBm TX power, 8dBm @ 10.6mA
- -98.9 dBm BLE RX sensitivity at 1 Mbps
- Small size: 12.9 mm x 15.0 mm
WiFi 6 Module
WiFi 6 builds on WiFi 5 and improves energy efficiency, reduces latency, and adds centimetre-accurate distance tracking to other WiFi 6 devices.
-
1T1R in 2.4 GHz band
- Operating frequency: 2412 ~ 2484 MHz
- IEEE 802.11ax-compliant
- Fully compatible with IEEE 802.11b/g/n protocol
LoRa Module
LoRa is for applications that require long-distance, low-power consumption, low data rate and low-cost wireless communication.
-
SEMTECH LoRa® modulation for LPWAN
- Long Range: 3~5 km
- High Transmitting power: 22dBm
- High Sensitivity: -136dBm @SF12, BW125kHz
- Lower standby current: 0.8mA
- Ultra low sleep current: 1.2uA

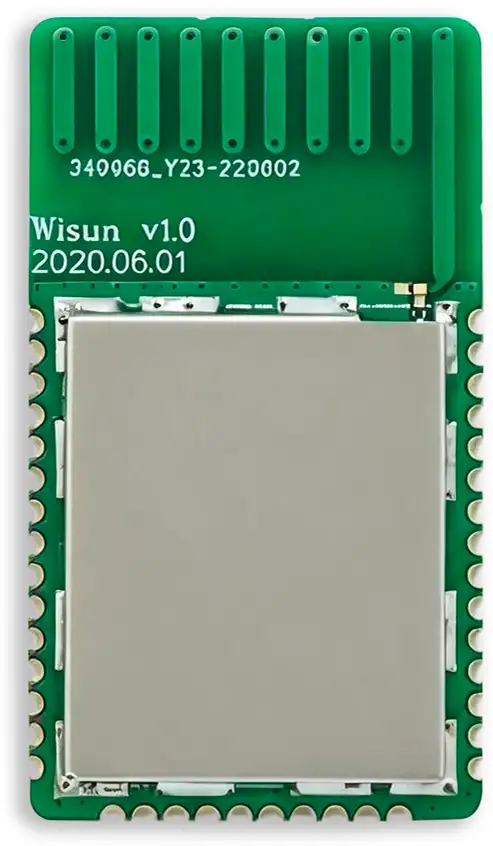

Wi-SUN Module
Wi-SUN is for large-scale, low-power consumption and high-reliability outdoor IoT scenarios, characterised by self-organising networks, self-healing, IPv6 support and strong security.
-
Based on Silicon Labs Wi-SUN families SOC
- High Tx power up to 20dBm @Sub-GHz
- High Rx sensitivity: -126.2 dBm at 600 bps, GFSK, 915 MHz
- Low Energy Consumption: 1.5 μA EM2 DeepSleep current
